Aqara

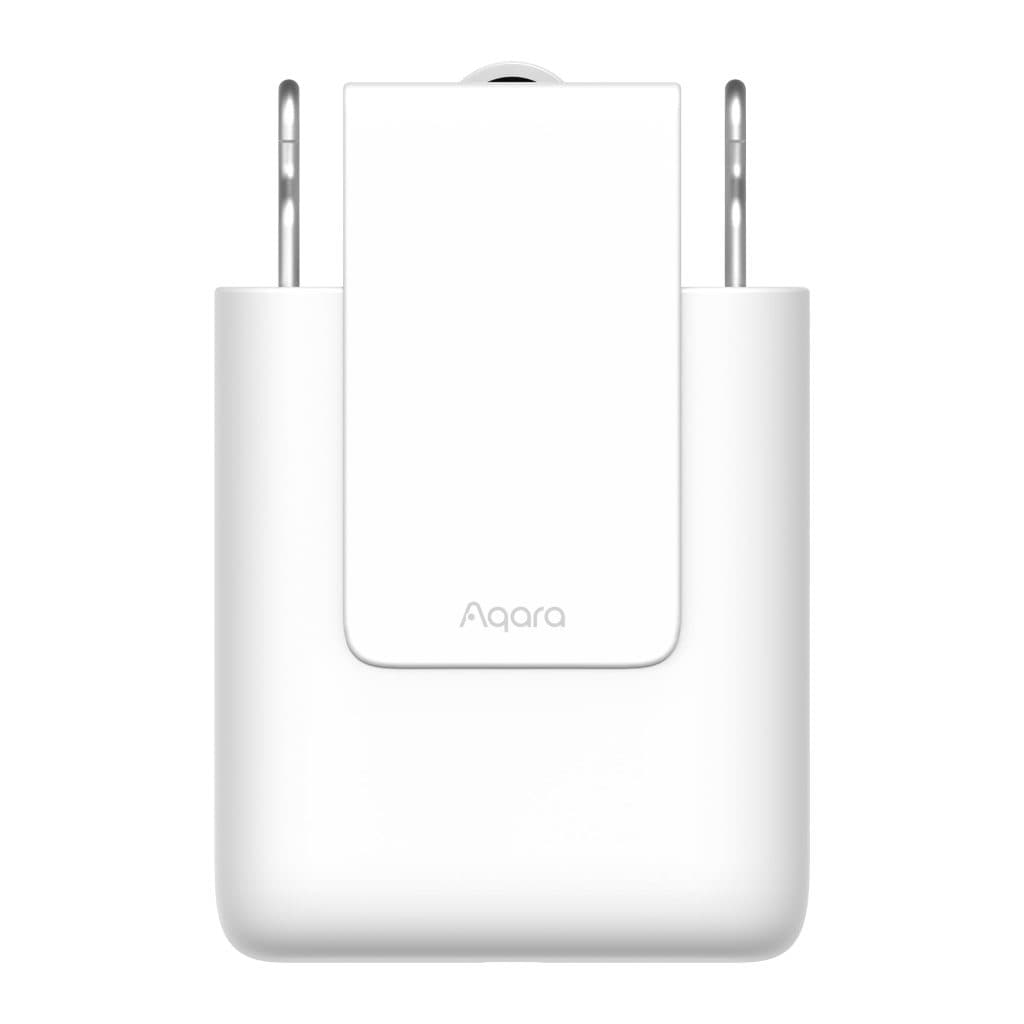

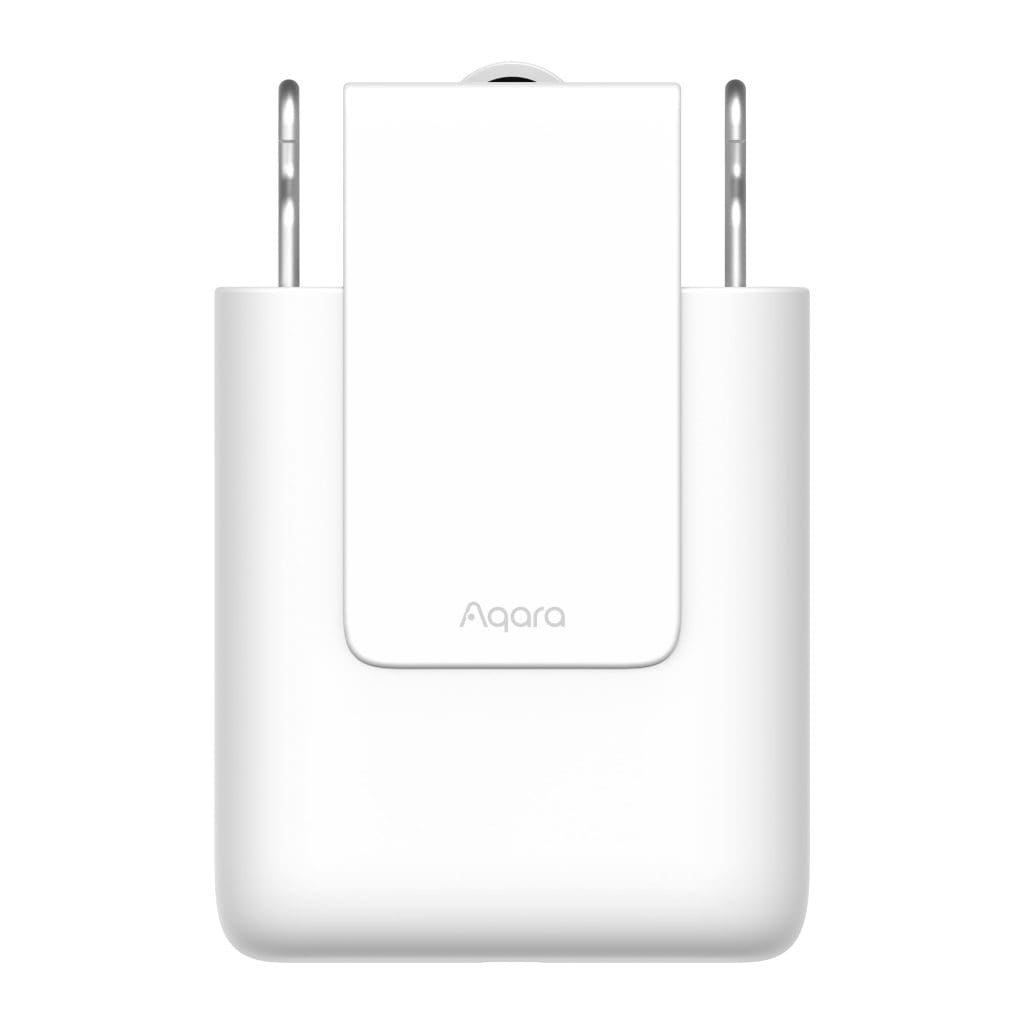

Aqara Curtain Driver E1 (Track Version)
- Zigbee
Verified September 2026
Same driver electronics as the Rod version we already list, but clipped to a U-rail/I-rail track instead of dragging fabric on a pole — pick this one if your curtains run on the boxy plastic track common in UK new-builds. It clips onto U-rail track with a bottom slot under 8mm (needs wheeled gliders), or I-rail track with a bottom width of 10mm or more — check yours before ordering, since curved or special-shaped rails aren't supported. At 145.7 × 96 × 46mm it's a chunky unit that sits visibly at the track end. Cheaper than the rod version too, though pairing outside the official Aqara hub varies by coordinator.
In Home Assistant
| Control | Type | What it does |
|---|---|---|
| Position | Cover (0-100%) | Read from the driver's onboard rotation encoder rather than time-based estimation; only trustworthy after running calibration, which in practice needs the Aqara app. |
| Motor state | Sensor | Stopped/opening/closing/pause. Pause instead of a clean stop is the tell that the rail carriage is binding or overloaded. |
| Hooks lock | Lock + sensor | Locks or releases the plastic hooks that grip the U-rail/I-rail carriage — worth watching during install, as detaching mid-cycle can strand the carriage on the track. |
| Illuminance | Sensor | Built-in lux sensor, identical to the Rod version — usable in automations without a separate light sensor. |
| Manual action | Event | Fires manual_open/manual_close when the carriage is pulled by hand. |
Zigbee2MQTT identifies this unit under the exact same model as the Rod version — it isn't a separate device profile, so every quirk already logged for the Rod driver applies unchanged here: the motor-state sticking bug, calibration that only reliably completes through the Aqara app, and manual open/close action events firing on hand-pulls. Aqara's own spec sheet lists the same 12kg max load for both mount types, so there's no lighter-duty variant to plan around despite the cheaper price. The one real mechanical difference is that position comes from the driver's internal rotation encoder rather than a time-based estimate, so a stiff or binding track tends to surface as a stuck running flag or a paused motor state rather than silent position drift — worth alerting on instead of assuming the reported position stays accurate.
Specs
- battery
- 6000mAh rechargeable, roughly 1 year runtime
- charging
- USB-C (cable included in box); Aqara doesn't publish a charge time
- mount type
- Track (U-rail ≤8mm bottom slot with wheeled gliders, or I-rail ≥10mm bottom width, straight only)
- max load kg
- 12
- dimensions mm
- 145.7 x 96 x 46
- protocol version
- Zigbee 3.0 (IEEE 802.15.4)
