Zemismart
Zemismart MTP1 Matter-over-Thread Blind Driver
- Thread
- Matter
Verified September 2026

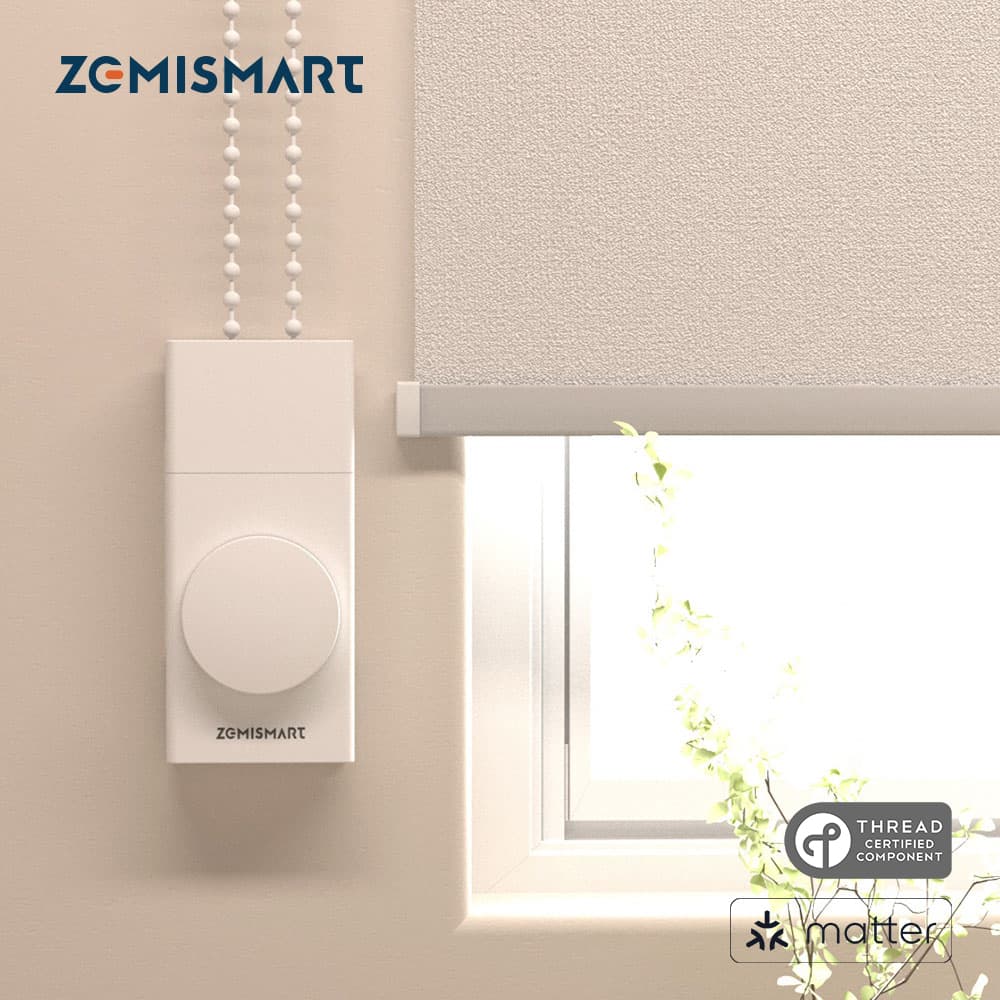

A genuinely new-generation retrofit motor: it clips onto the bead chain of a roller, zebra, honeycomb or venetian blind and joins Home Assistant directly over Thread — no Tuya cloud, no bridge, just a Thread border router (HomePod mini, Aqara hub, or your own coordinator). At 135.5 × 60 × 30mm it's iPhone-sized, rated for chains carrying up to 10kg of blind — enough for all but the heaviest fabric. The built-in 6400mAh battery (two 18650 cells) charges via USB-C and runs roughly six months per charge on one cycle a day. Independent reviewers confirm position updates mirror instantly in HA when driven locally.
In Home Assistant
| Control | Type | What it does |
|---|---|---|
| Lift position | Cover (0-100%) | Current/target lift percentage; the cover entity drives it directly and reflects locally-driven moves in real time. |
| Operational status | Attribute | Moving/stopped/stalled — the most useful signal for detecting bead-chain slip or an obstruction mid-travel, since position alone won't catch a stall. |
| Battery | Sensor (%) | Reports remaining battery percentage and charge state, with no built-in low-battery automation, so pair it with your own threshold automation. |
| Open/close/stop | Service | Standard cover commands mapped to HA's open/close/stop services. |
| Calibration limits | Device-side only | Upper/lower travel limits are set via the bundled RF remote before Matter commissioning; HA's entity has no calibration control or recalibration trigger. |
HA's Matter integration exposes the MTP1 as a window-covering entity — current/target lift position, an operational-status attribute (moving/stopped/stalled), and a separate battery-percentage sensor — but calibration lives entirely outside HA: upper/lower travel limits must be set first with the bundled RF remote, since pairing before calibrating leaves the motor running past its physical stops. Being a Tuya-chipset stack rather than a name-brand Matter chip, initial commissioning is the rough edge — users hit discovery timeouts that don't occur pairing to Apple Home or Google Home, and the reliable fallback is commissioning to one of those ecosystems first, then re-opening its pairing window to add it to HA as an already-commissioned device. The stepped mounting bracket holds decent tension on the bead chain, with reviewers reporting no slip over months of testing, so the reported lift percentage tracks actual blind position more reliably than most clip-on retrofits — making the operational-status attribute worth automating on directly: watch for a stalled status mid-move to catch chain slip or an obstruction and stop the motor plus fire a notification.
Specs
- battery
- 6400mAh built-in rechargeable (two 18650 cells), solar panel optional
- charging
- USB-C, 5V/1A
- max load
- 10kg bead-chain load rating
- dimensions
- 135.5 x 60 x 30mm
- mount type
- Retrofit bead-chain driver
- battery life
- Roughly 6 months per charge on one open/close cycle a day
- hub required
- Any Thread border router
- compatible blind types
- Roller, zebra, honeycomb, venetian (bead chain operated)
