Aqara

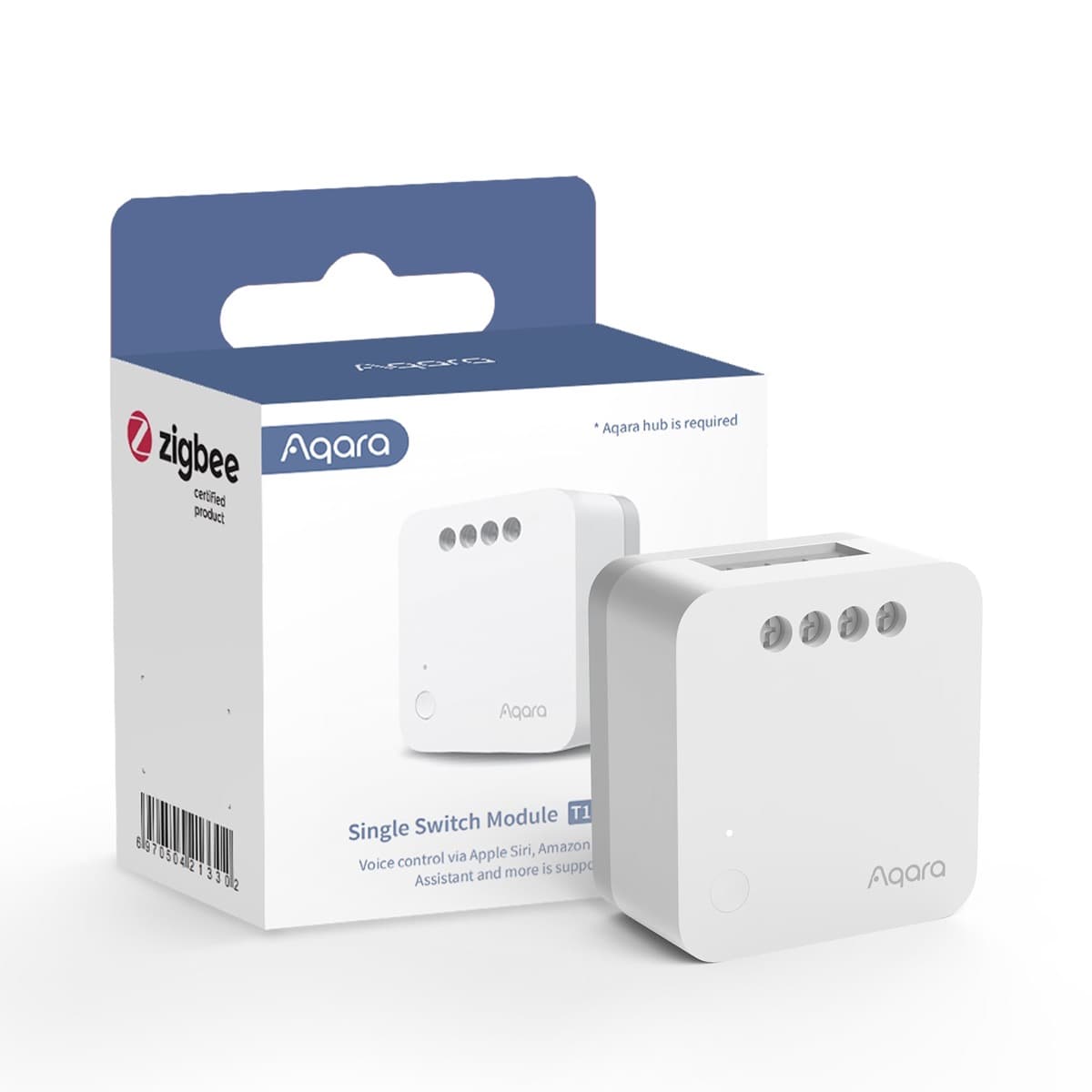

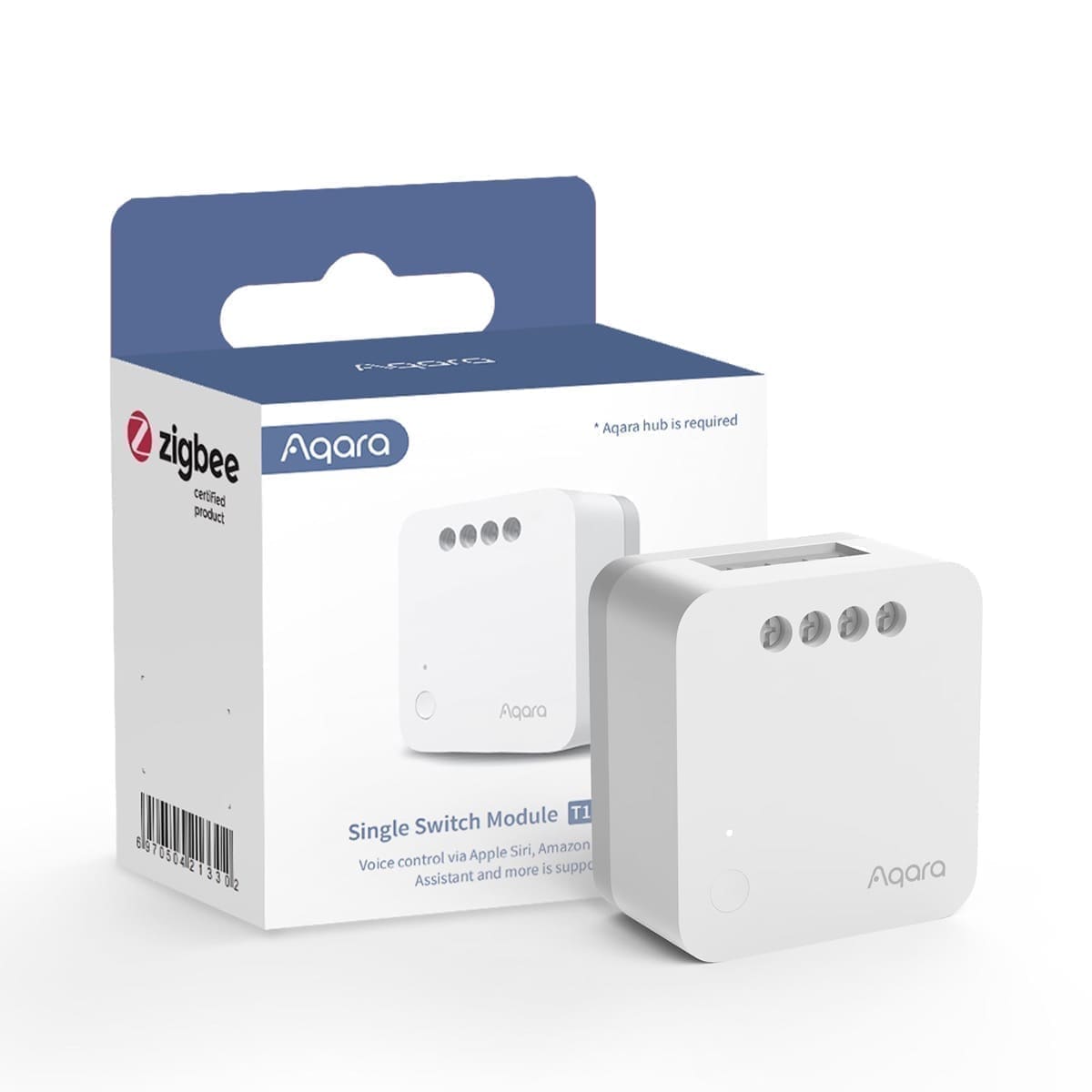

Aqara Single Switch Module T1 (No Neutral)
- Zigbee
Verified September 2026
A polished no-neutral Zigbee relay (model SSM-U02) that pairs directly with Zigbee2MQTT or ZHA — no Aqara hub needed, despite what the box says. It costs noticeably more than SONOFF's no-neutral equivalent (the ZBMINI-L2, roughly half the price), but the extra spend buys tidier build quality and reliable power-failure memory. Like all capacitor-based no-neutral relays, it borrows a trickle of current through the load to stay powered — fine for standard bulbs, but dimmable LED drivers can flicker or hum faintly at low brightness, so it's best matched to simple on/off lighting circuits rather than dimming setups. A with-neutral SSM-U01 sibling adds energy monitoring if that matters.
In Home Assistant
| Control | Type | What it does |
|---|---|---|
| Switch | Toggle | Turn the load on/off |
| Power outage memory | Selector | Choose the state to restore after a power cut |
| Device temperature | Sensor (°C) | Onboard temperature — the only load-strain proxy, since this no-neutral model has no power/energy sensor |
The no-neutral design has a real load ceiling worth knowing before wiring it in — independent testing puts it at a 3W minimum and 1250W maximum, notably lower than the 2200W figure sometimes quoted for this line. There's no power/energy sensor at all on this no-neutral variant (only the with-neutral SSM-U01 sibling meters), so the useful signal instead is device_temperature — worth an automation alerting if the relay is running hot under sustained load near that ceiling, since there's no wattage reading to infer strain from directly.
Specs
- model
- SSM-U02
- channels
- 1
- max load w
- 1250
- min load w
- 3
- dimensions mm
- 42.9 x 40 x 21.4
- neutral required
- false
- no neutral capable
- true
- with neutral variant
- SSM-U01
