Dreame

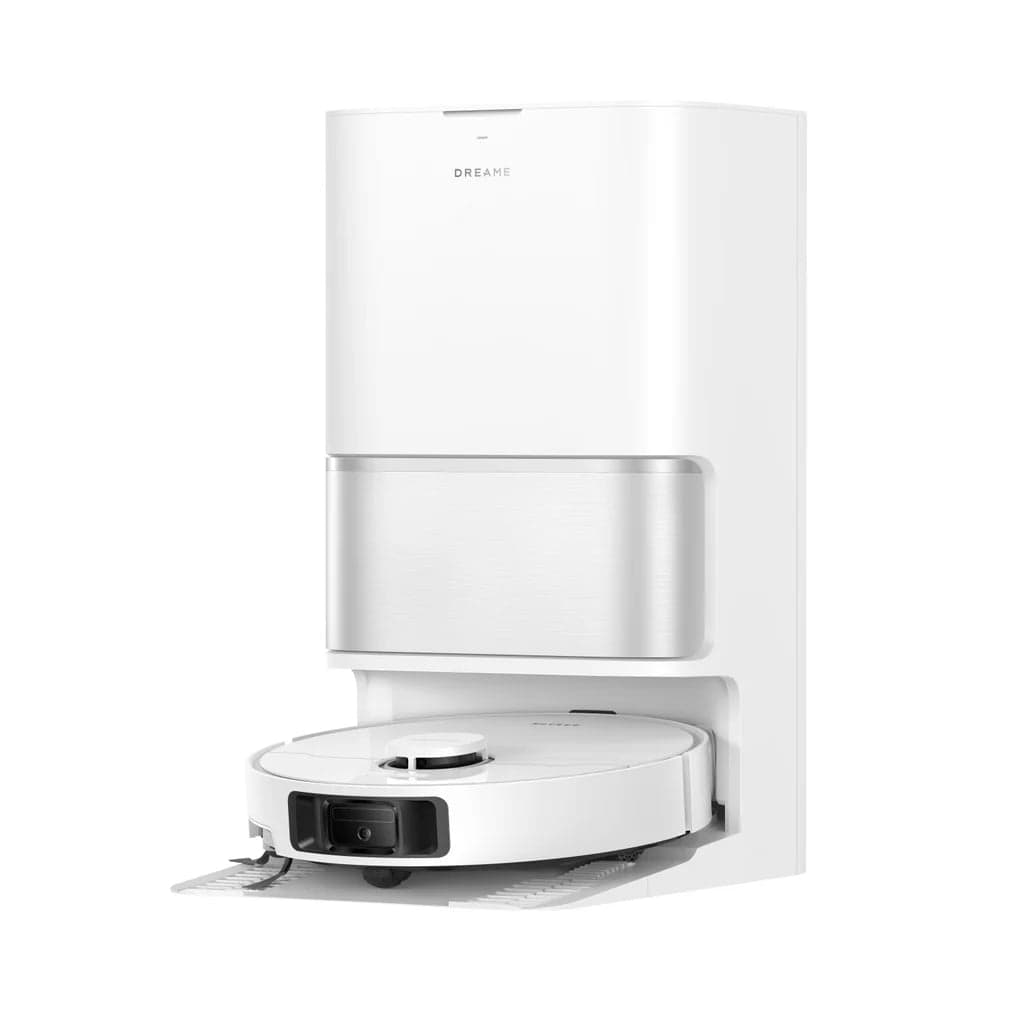

Dreame L10s Ultra Gen 3
- Wi-Fi
Verified September 2026
No official Dreame integration, but the community dreame-vacuum HACS component is actively maintained and confirmed working with this exact Gen 3 model — it replaces the Mi Home-style app entirely inside Home Assistant, including live maps. Setup needs your Dreame account credentials (or a manually extracted local token on some firmware versions), and firmware updates occasionally break the local protocol until the integration catches up, usually within days. Hardware-wise: a 350mm-wide, 97mm-tall robot rated to 25,000Pa suction, running 3DAdapt obstacle avoidance (AI camera plus structured light and laser) for roughly 231 minutes per charge on its 5,200mAh battery, docking into a PowerDock that empties, refills, and washes/dries its own mops.
In Home Assistant
| Control | Type | What it does |
|---|---|---|
| Vacuum | Vacuum | Start/pause/stop, dock, and room-targeted cleaning via a service call with segment IDs pulled from the map card. |
| Map | Camera | Live rendered map image; only populates when the integration runs with cloud connection preferred, not in pure local mode. |
| Room suction/water level | Select | Per-room overrides, generated dynamically per detected room — requires cloud connection and custom cleaning enabled. |
| Auto drying | Switch | Controls the self-empty/wash dock's mop auto-dry and water electrolysis cleaning cycle after each mopping run. |
| Consumable life | Sensor | Wear tracking for mop pad, main brush, filter, and sensors, for maintenance-reminder automations. |
Unlike the cloud-polling Roborock and Ecovacs integrations, dreame-vacuum auto-generates a large entity set per model — select entities for suction/water/mop humidity, number entities for volume and do-not-disturb scheduling, dedicated wash/dry base switches — and its map card support includes a genuine room-boundary picker rather than raw zone coordinates. The catch is that the live map camera entity and per-room custom cleaning selects only populate when the integration is running with cloud connection preferred — pure local mode drops map rendering and room-level selects even though core cleaning commands still work locally. Newer Dreame models provisioned through the newer Dreame app rather than legacy Xiaomi auth have had recurring reports around 2FA prompts and account migration breaking the config flow, separate from the firmware-vs-local-protocol breakage already noted in the editor note.
Specs
- dock
- PowerDock — self-empty (3.2L dust bag, ~100 days), auto mop wash/dry, auto water tank + detergent refill
- mopping
- yes, dual rotary mop (DuoScrub) with auto-wash/dry, 32-level moisture control, lifts 10.5mm to clear carpets
- suction
- up to 25000Pa (Vormax) — confirmed on Dreame's official UK store page, July 2026; earlier draft had 12000Pa, likely mixed up with a different Dreame model
- dimensions
- robot: 350mm diameter x 97mm height (dock dimensions not published by Dreame)
- navigation
- LiDAR (Pathfinder 360° scanning, maps up to 4 floors)
- battery runtime
- 5,200mAh battery, up to 231 minutes / 156m² per charge in Quiet Suction, vacuum-only mode
- obstacle avoidance
- 3DAdapt — AI RGB camera + structured light sensor + dynamic laser navigation
