MOES

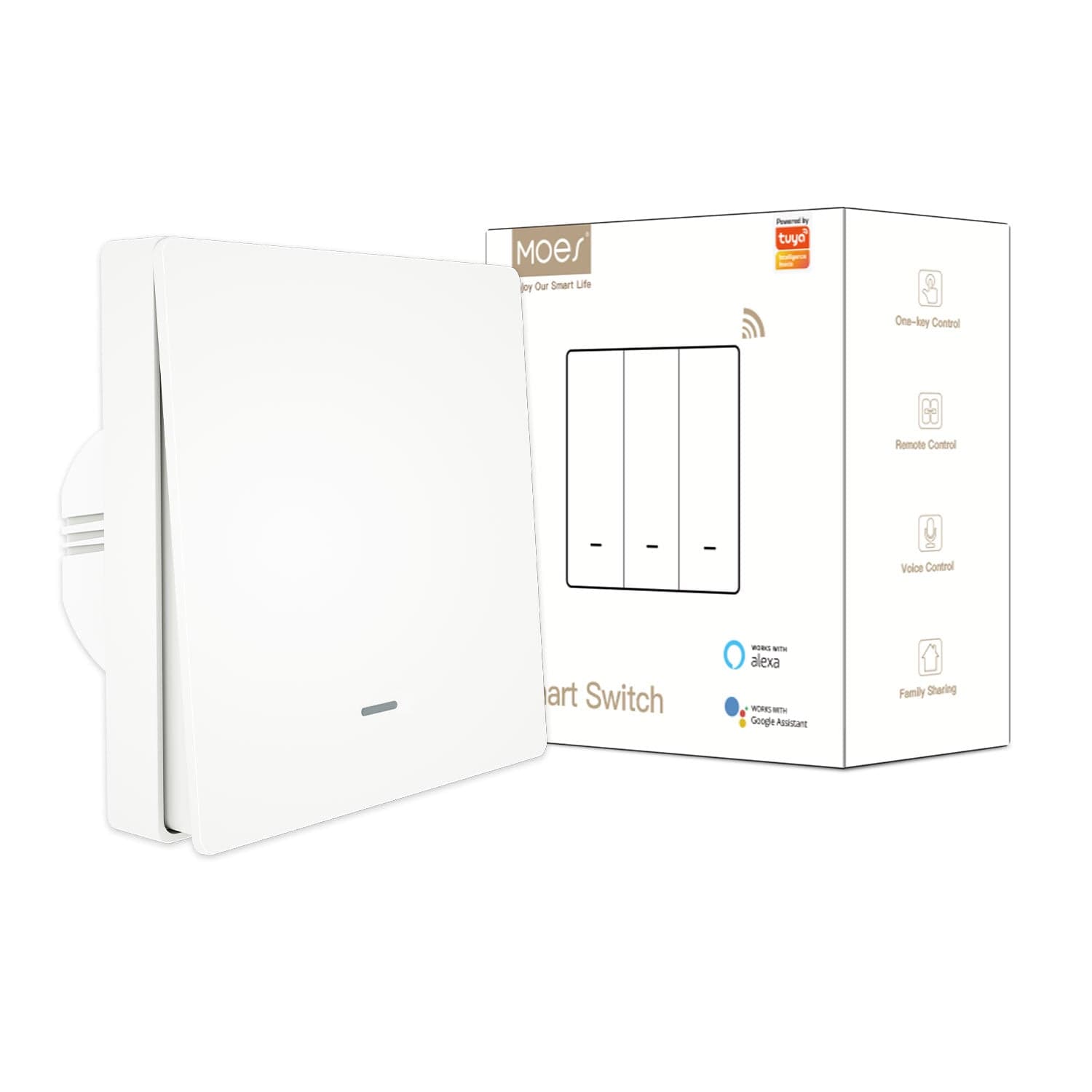

MOES Zigbee Smart Wall Light Switch (1 Gang, Neutral Optional)
- Zigbee
Verified September 2026
This is the plain-plate sibling of the MOES Star Ring switch listed elsewhere on this site — same no-neutral-required Zigbee 3.0 board, same Zigbee2MQTT/ZHA support, just a flat white rocker instead of the backlit ring, at roughly half the price. Zigbee2MQTT supports it directly as the ZS-EUB_1gang (ignore the Amazon listing's 'Tuya ZigBee Hub Required' title text — that's generic Tuya marketing copy, not a real requirement; the switch pairs with any standard Zigbee coordinator). MOES rates it 10A total, with LED/CFL loads capped at 3-120W and incandescent loads at 3-300W (110V) or 3-600W (220V) — the LED figure is the one that matters for most UK lighting circuits. It fits a standard 86x86mm UK single-gang faceplate, but MOES doesn't publish a minimum backbox depth for this model, so measure a tight box before ordering.
In Home Assistant
| Control | Type | What it does |
|---|---|---|
| Light | Switch | On/off control of the load; supports a device-side auto-off timer and post-off lockout window set directly on the switch rather than through an HA automation. |
| Power-on behavior | Select | Off/on/previous — determines the load state after a mains power cut. |
| Backlight mode | Select | Off/normal/inverted — controls the status LED indicator behaviour on the faceplate, independent of the load's on/off state. |
| Signal quality | Sensor | Standard Zigbee link-quality diagnostic; worth monitoring since this switch never acts as a router even with the neutral wire connected. |
Zigbee2MQTT exposes on/off with hardware-level auto-off and post-off lockout timers plus power-on-behavior and backlight-mode selects — no motion or energy reporting, just switching. The firmware-batch quirk mentioned in the editor note isn't really a gateway-compatibility wall so much as a misidentification bug: some manufacturer strings get fingerprinted as a different sibling switch, silently swapping in the wrong options and reporting as an end device rather than a router. That end-device status is otherwise normal, not a fault — this switch never routes even with the neutral wire connected, so don't plan on it patching a mesh gap the way an equivalent Aqara or Fibaro unit would.
Specs
- gangs
- 1
- protocol
- Zigbee 3.0
- max load a
- 10
- faceplate mm
- 86 x 86 (standard UK single-gang)
- rated voltage
- AC100-250V, 50/60Hz
- max load led w
- 3-120W (LED/CFL, inductive load)
- neutral required
- false
- power consumption w
- 0.5
- min back box depth mm
- null
- max load incandescent w
- 3-300W at 110V / 3-600W at 220V (resistive load)
