Shelly

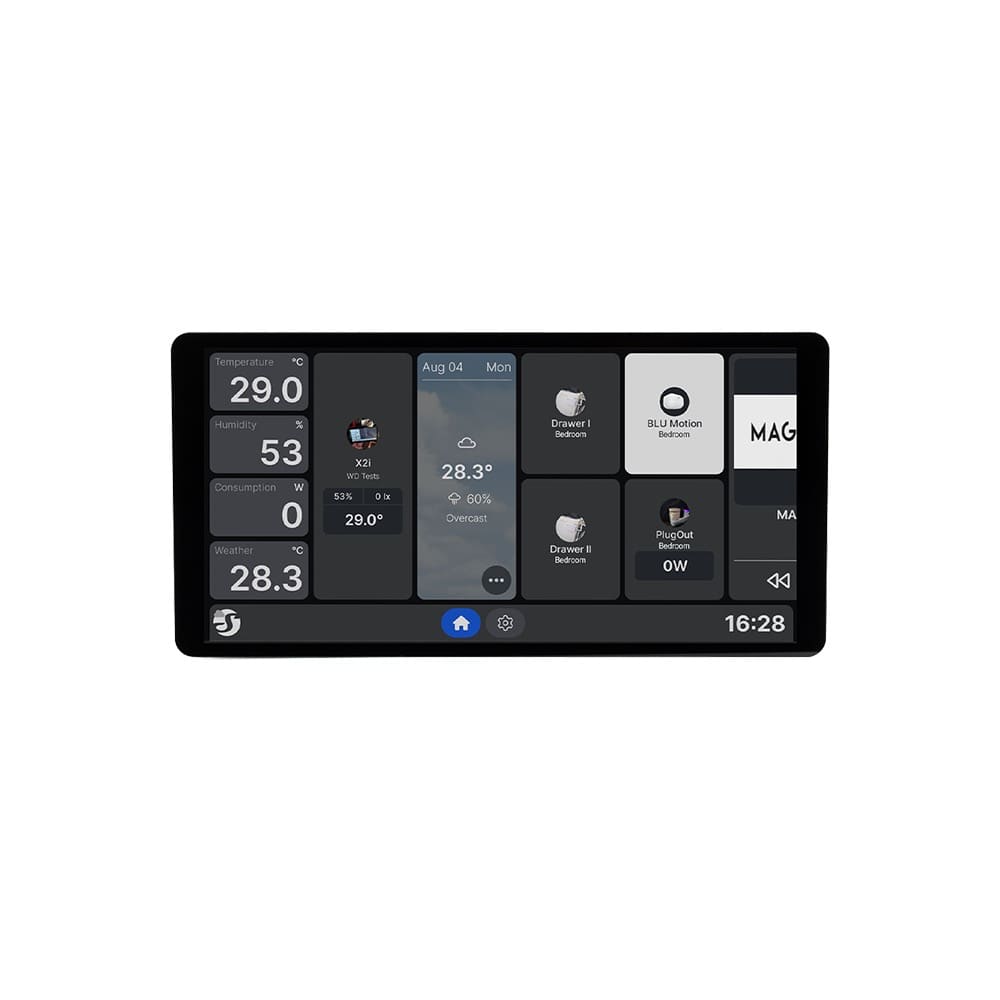

Shelly Wall Display X2i
- Wi-Fi
- Bluetooth
Verified July 2026
The big brother to the X1i — a 6.9-inch panel that's genuinely pleasant to glance at, and the extra RAM copes better with a real dashboard than the smaller unit does. It's still fundamentally a light switch with a screen glued on: the relay talks to Home Assistant locally and instantly, but the dashboard view is a browser you configure yourself, not something the integration builds for you. Keep the layout simple — cameras and heavy animations show up the underlying tablet hardware's limits.
In Home Assistant
| Control | Type | What it does |
|---|---|---|
| Relay switch | Switch | The onboard 5A/240V relay, controlling whatever light or appliance circuit is wired to it |
| Display media player | Media player (firmware 2.2+) | Volume/mute control for the panel's built-in speaker |
| Ambient light | Sensor | Onboard light-level sensor, usable for scene automations independent of the wired relay |
| Dashboard kiosk view | Device-side browser setting, not an HA entity | Point the panel at your HA instance URL to full-screen your existing dashboard — configured on the device, not created by the integration |
The shelly integration adds the relay as a local switch entity over RPC (HTTP/WebSocket), fully local with no cloud dependency. One thing worth knowing before wiring an automation to it: reviewers report the built-in temperature sensor reads 3-4°C high due to the display's own self-heating, so use a separate temperature sensor for any climate automation rather than this one. A useful automation instead: since the panel exposes a light-level sensor entity, use it to trigger an 'evening mode' scene when ambient room light drops, independent of whatever the relay itself controls.
Specs
- os
- Android 11
- ram
- 2 GB
- wifi
- Wi-Fi 6 dual-band (2.4GHz/5GHz)
- touch
- 5-point capacitive, portrait or landscape mount
- sensors
- light, proximity, microphone, speaker
- storage
- 8 GB
- mounting
- standard UK/EU flush wall box (light switch back box)
- processor
- Rockchip RK3326-S quad-core Cortex-A35 1.5GHz
- screen size
- 6.9 inch, 1440x720
- relay rating
- 5A, 240V max switching (2-output power base sold separately)
- neutral required
- true
